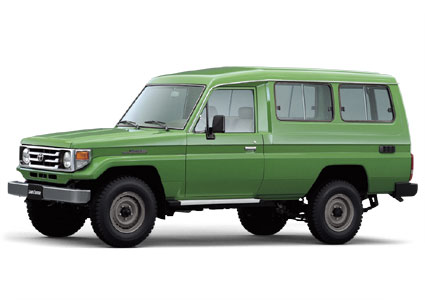

Vehicle specification : HZJ 75



For those of you who like figures and details, here it is all : car specification and features.

ENGINE

  • Type : Diesel

  • Name : 1HZ

  • Configuration : 6 Cylinder, In-line

  • Valve Mechanism : Direct Acting Overhead Cam, Belt-driven

  • Fuel System : Indirect Injection

  • Displacement (cc) : 4164

  • Bore and Stroke (mm) : 94 x 100

  • Compression Ratio : 22.7:1

  • Max. Power (kW/rpm - ECE) : 96/4000

  • Max. Torque (Nm/rpm) : 271/2000



TRANSMISSION

  • Type : 5-speed Manual.

  • Clutch : Single dry plate diaphragm spring clutch.

  • Gear Ratios

  • 1st : 4.843

  • 2nd : 2.618

  • 3rd : 1.516

  • 4th : 1

  • 5th : 0.845

  • Reverse : 4.843

  • Transfer Ratio

  • High : 1

  • Low : 1.963

  • Differential Ratio : 4.111



STEERING

  • System : Power assisted ball and nut

  • Power Assistance : Engine Speed Sensitive

  • Turning Circle Dia. (kerb to kerb - m) : 13.0 - 2WD, 13.8 -4WD

  • Turns lock to lock : 3.1



BRAKES

  • System : Vacuum boosted dual circuit hydraulic with load sensing proportioning and by-pass valve

  • Front : 302 mm diameter ventilated disc with twin piston fixed caliper

  • Rear : 295 mm diameter disc with single piston fully floating caliper



SUSPENSION

  • Front : Solid axle, semi-elliptic leaf spring, double-acting gas pressurised damper. Stabiliser bar.

  • Rear : Solid axle, semi-elliptic leaf spring, double-acting gas pressurised damper.



WHEELS

  • Tyre size : 7.50R16 -

  • Tyres : 12 Ply Michelin XZY (for more on our tyres : The XZY page)

  • Rims(ins) : 16 x 5.5F Steel

DIMENSIONS

  • Wheelbase (mm) : 2980

  • Overall Length (mm) : 4995

  • Overall Width (mm) : 1700

  • Overall Height (mm) : 2090

  • Front Track (mm) : 1415

  • Rear Track (mm) : 1400

  • Load Length (mm) : 2085

  • Load Width (mm) : 1510 (3 seater), 1170 (11 seater)

  • Load Height (mm) : 1265

  • Ground Clearance (mm) : 230



WEIGHTS/CAPACITIES

  • Front Axle Capacity (kg) : 1300

  • Rear Axle Capacity (kg) : 2500

  • Nominal Kerb Mass(kg) : 2071

  • Gross Vehicle Mass (kg) : 3035

  • Seating Capacity : 3 or 11

  • Fuel Capacity (litres) : 90 + 90L auxiliary tank

  • Towing capacity With Trailer Brakes (kg) : 2500

  • Towing capacity Without Trailer Brakes (kg) : 750



MECHANICAL FEATURES

  • Limited Slip Differential

  • Manual Free Wheeling Hubs

  • Fully Floating Front and Rear Axles

  • Power Steering

  • Cyclone Air Cleaner

  • Double Fuel Filter

  • Auxiliary Fuel Tank (90litre)



EXTERIOR FEATURES

  • Halogen Headlamps

  • Front & Rear Mudflaps

  • Blue Tinted Laminated Windscreen

  • Side Door Occupant Impact-Protection Beams

  • Spare Wheel on Back Door with Cover

  • Dust Snorkel



INTERIOR FEATURES

  • Fuel Level Warning Lamp (Main Tank Only)

  • Engine Oil Level Warning Lamp

  • Non Ignition Sensitive Fuel Level Gauge

  • Instrument Illumination Control

  • Assist Grips on Dash and Door Frame

  • Air Cleaner Service Warning

  • Glove Box

  • Digital Clock

  • Quarter Vent Windows

  • Drivers Bucket Seat & Front Two Seat Bench

  • Front Head Rests

  • Hand Throttle

  • Electronically Tuned AM/FM Radio with 4 Speakers

  • Auto Reverse Stereo Cassette

  • Sub Fuel Tank Gauge
